Wannier90 SrTiO3
Unfold a real Wannier90 tight-binding Hamiltonian of cubic SrTiO$_3$ —
the pristine $\sqrt{2}\times\sqrt{2}\times 2$ supercell (20 atoms, 56
Wannier functions) and, on the same footing, a Ti-vacancy supercell —
onto the 5-atom cubic primitive cell along Γ-X-M-Γ-R. The bundled
wannier90_hr.dat files are exactly as written by Wannier90; the
package’s own reader (hr + win + Wannier-function centres) is all that
is needed, minimulti is not required.
The bundle
Download wannier-sto.tar.gz and unpack it:
tar xf wannier-sto.tar.gz && cd wannier-sto
Shipped: the real Wannier90 outputs for the pristine
(data/pristine/) and Ti-vacancy (data/ti_vacancy/) supercells —
wannier90.win, wannier90.wout and the 38 MB wannier90_hr.dat
each (the compressed bundle is ~7 MB) — plus reproduce.py, and a tiny
synthetic t$_{2g}$ smoke fixture (data/example_hr.dat, documented in
the bundle README) so the route can be self-tested without the large
files. Prerequisites: pip install unfolding (numpy, matplotlib, ase).
Structure and k-path
| primitive cell | cubic perovskite SrTiO$_3$, a = 3.9 Å, 5 atoms |
| supercell matrix | M = [[1,-1,0],[1,1,0],[0,0,2]] — the $\sqrt{2}\times\sqrt{2}\times 2$ tetragonal cell (20 atoms) |
| Wannier functions | 56: 12 O sites × (p_z, p_x, p_y) + 4 Ti sites × (d_z2, d_xy, d_yz, d_x2, d_xz); disentanglement with a frozen window on a 6×6×4 mp-grid |
| Ti-vacancy dataset | one Ti site vacant (dummy species V in the win); the vacancy-site d shell is kept, so labels and M are identical |
| orbital positions | final Wannier-function centres, read from the .wout |
| k-path | Γ-X-M-Γ-R, 200 points, vertices in primitive fractional coordinates: (0,0,0), (.5,0,0), (.5,.5,0), (0,0,0), (.5,.5,.5) |
Run parameters and shared options (mode, spin, method, resolve_degenerate, supercell-matrix row convention, k-path coordinates and frames, energy-reference conventions) are explained together in the method, parameters, and k-path guide. Primitive-cell input: not used — the Wannier90 Hamiltonian already carries its own cell (structure.cell or the .win file).
Configuration
# Wannier90 SrTiO3: pristine 20-atom sqrt(2)xsqrt(2)x2 supercell
# (56 Wannier functions: O-2p + Ti-3d) unfolded onto the 5-atom cubic
# primitive cell.
# Run from the unpacked bundle root (requires pip install unfolding):
# unfolding --config unfold.toml
# Ti-vacancy dataset: change path to "data/ti_vacancy" and omit the
# resolve_degenerate option to preserve raw defect weights.
route = "wannier"
[input]
path = "data/pristine" # wannier90 directory (win + hr + wout)
prefix = "wannier90"
[structure]
supercell_matrix = [[1, -1, 0], [1, 1, 0], [0, 0, 2]] # A_sc = M @ A_prim, cubic a = 3.9 A
labels = [
"pz", "px", "py", "pz", "px", "py", "pz", "px", "py",
"pz", "px", "py", "pz", "px", "py", "pz", "px", "py",
"pz", "px", "py", "pz", "px", "py", "pz", "px", "py",
"pz", "px", "py", "pz", "px", "py", "pz", "px", "py",
"dz2", "dxy", "dyz", "dx2", "dxz",
"dz2", "dxy", "dyz", "dx2", "dxz",
"dz2", "dxy", "dyz", "dx2", "dxz",
"dz2", "dxy", "dyz", "dx2", "dxz",
]
[path]
kpoints = [[0, 0, 0], [0.5, 0, 0], [0.5, 0.5, 0], [0, 0, 0], [0.5, 0.5, 0.5]]
names = ["Γ", "X", "M", "Γ", "R"]
[options]
npoints = 200
resolve_degenerate = 0.1 # pristine only; omit for Ti-vacancy
[output]
output = "sto_unfolded.png"Named high-symmetry path
To let ASE choose the standard cubic path instead of listing explicit vertices,
replace the [path] table in the config with:
[path]
special_points = "GXMGR"G, X, M, and R are ASE special-point labels. The route derives the
primitive path cell by solving M @ A_prim = A_sc, where A_sc is the
Wannier90 <prefix>.win unit_cell_cart and M is supercell_matrix.
options.npoints sets the number of interpolated path points. An ASE-readable
path.path_cell may explicitly override the derived primitive path cell.
The CLI flag is --special-points GXMGR.
Run it
From the unpacked bundle directory, one command with the shipped config
(the unit cell comes from wannier90.win, so nothing needs pinning):
unfolding --config unfold.toml # -> sto_unfolded.png
The same TOML can be passed as the only Python input:
from unfolding import load_config, run
run(load_config("unfold.toml"))or through the Python API with explicit parameters (labels takes one
label per supercell orbital, 56 here):
from unfolding.wannier_unfold import run
ax = run(
path='data/pristine', prefix='wannier90', # win + hr + wout
labels=['pz', 'px', 'py'] * 12 + ['dz2', 'dxy', 'dyz', 'dx2', 'dxz'] * 4,
scmat=[[1, -1, 0], [1, 1, 0], [0, 0, 2]],
output_figure='sto_unfolded.png',
kvectors=[[0.0, 0.0, 0.0], [0.5, 0.0, 0.0], [0.5, 0.5, 0.0],
[0.0, 0.0, 0.0], [0.5, 0.5, 0.5]],
knames=[r'$\Gamma$', 'X', 'M', r'$\Gamma$', 'R'],
npoints=200,
resolve_degenerate=0.1, # pristine only; omit for a Ti-vacancy run
)Standalone real-data script
The repository example examples/wannier_STO/wannier_unfold.py uses only
the built-in Wannier90Model reader and WannierUnfolder; it does not
import pythtb or minimulti. Run from the repository root (with the package
dependencies installed):
python examples/wannier_STO/wannier_unfold.py both --output-dir /tmp/sto-bands
Use pristine or ti-vacancy instead of both to render one dataset.
The script writes sto_unfolded.png and sto_ti_vacancy.png in the chosen
output directory.
For pristine, the script resolves translation-sector weights within 0.1 eV
energy groups to remove arbitrary eigenvector rotations at folded degeneracies.

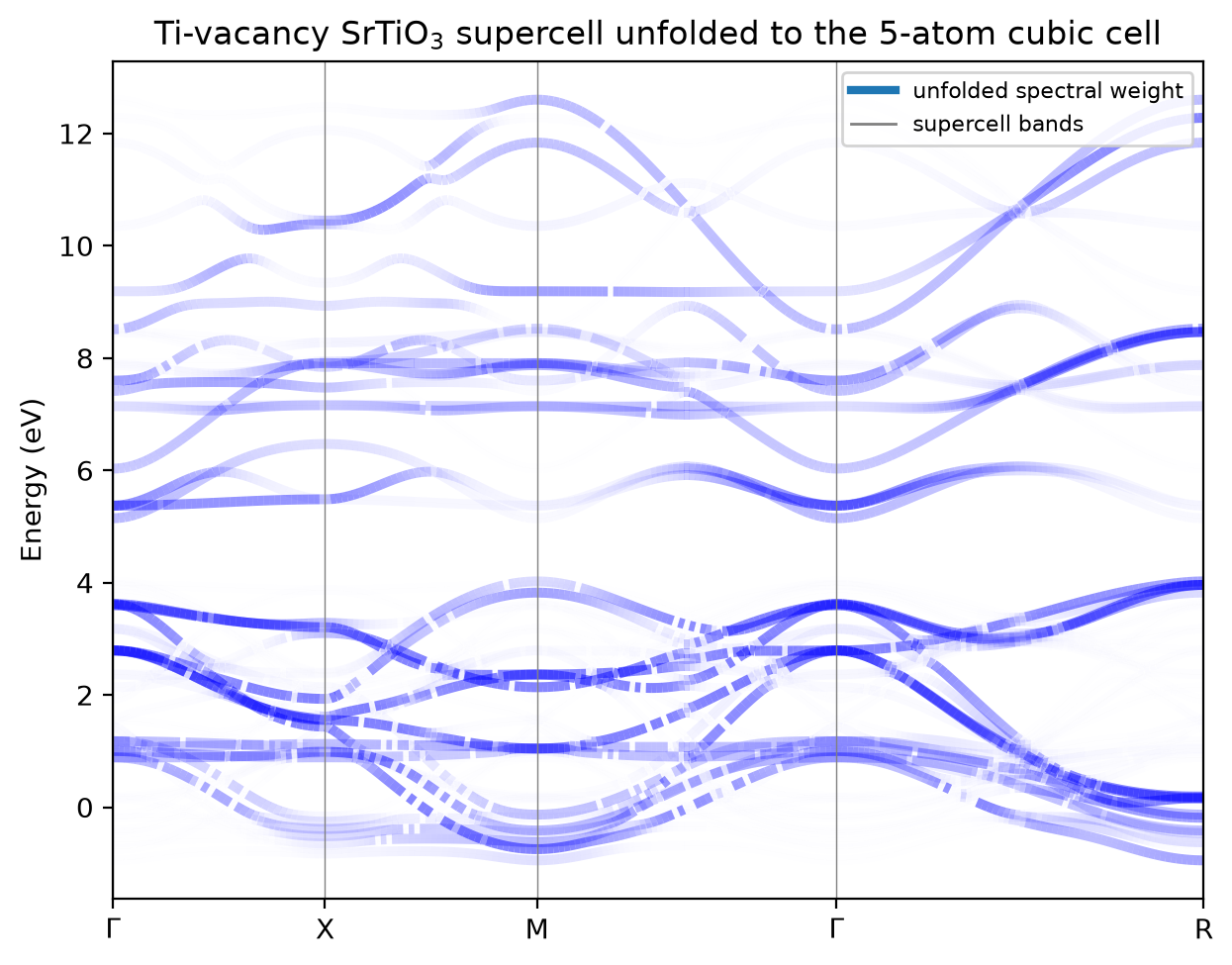

It leaves Ti-vacancy weights unresolved, preserving defect mixing and parity
with the historical-reader reference.
reproduce.py draws both real datasets through the same reader (each
run parses the 38 MB hr file once, ~5 s):
python reproduce.py --real pristine # -> sto_unfolded.png
python reproduce.py --real ti_vacancy # -> sto_ti_vacancy.png
